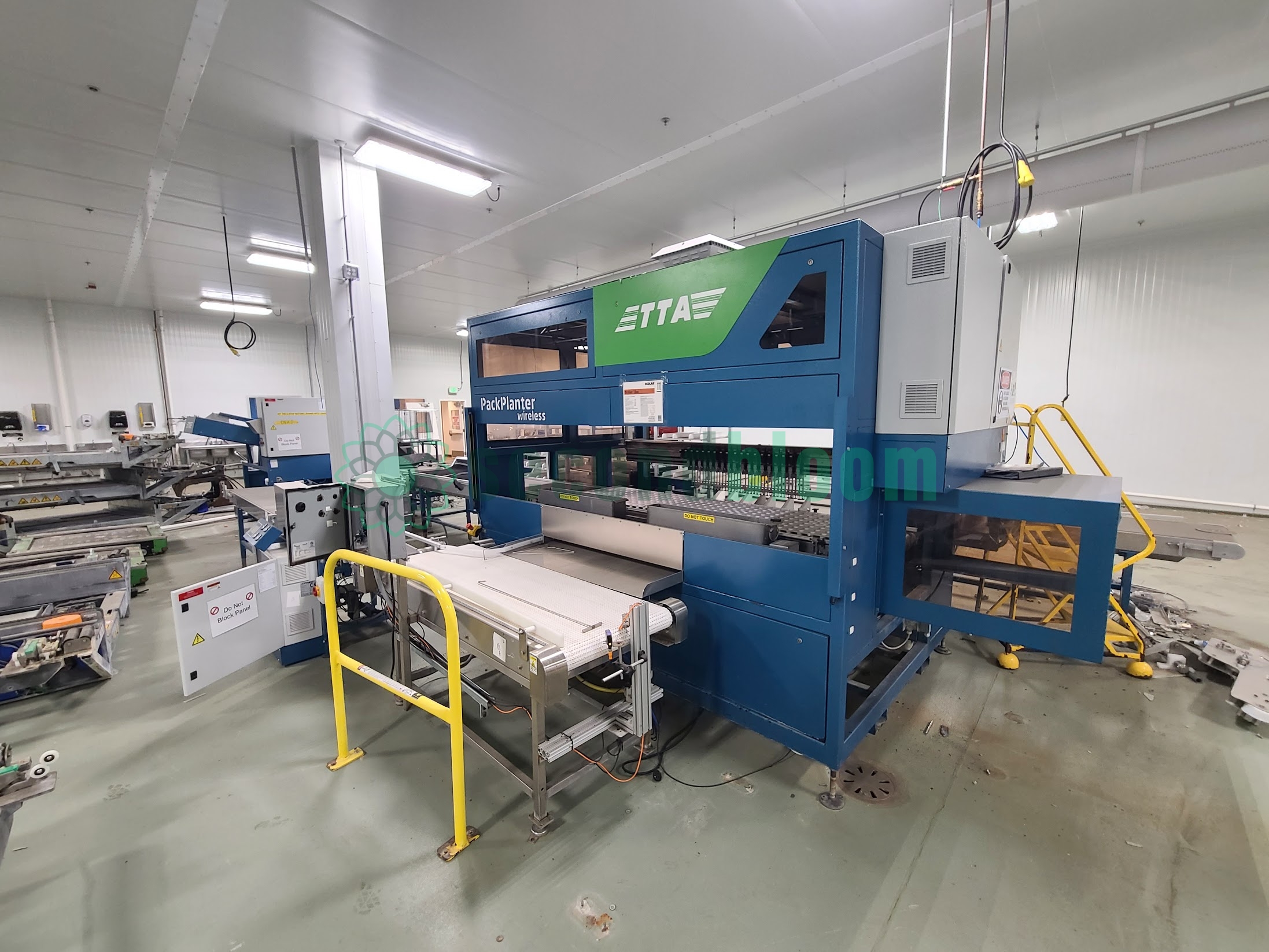

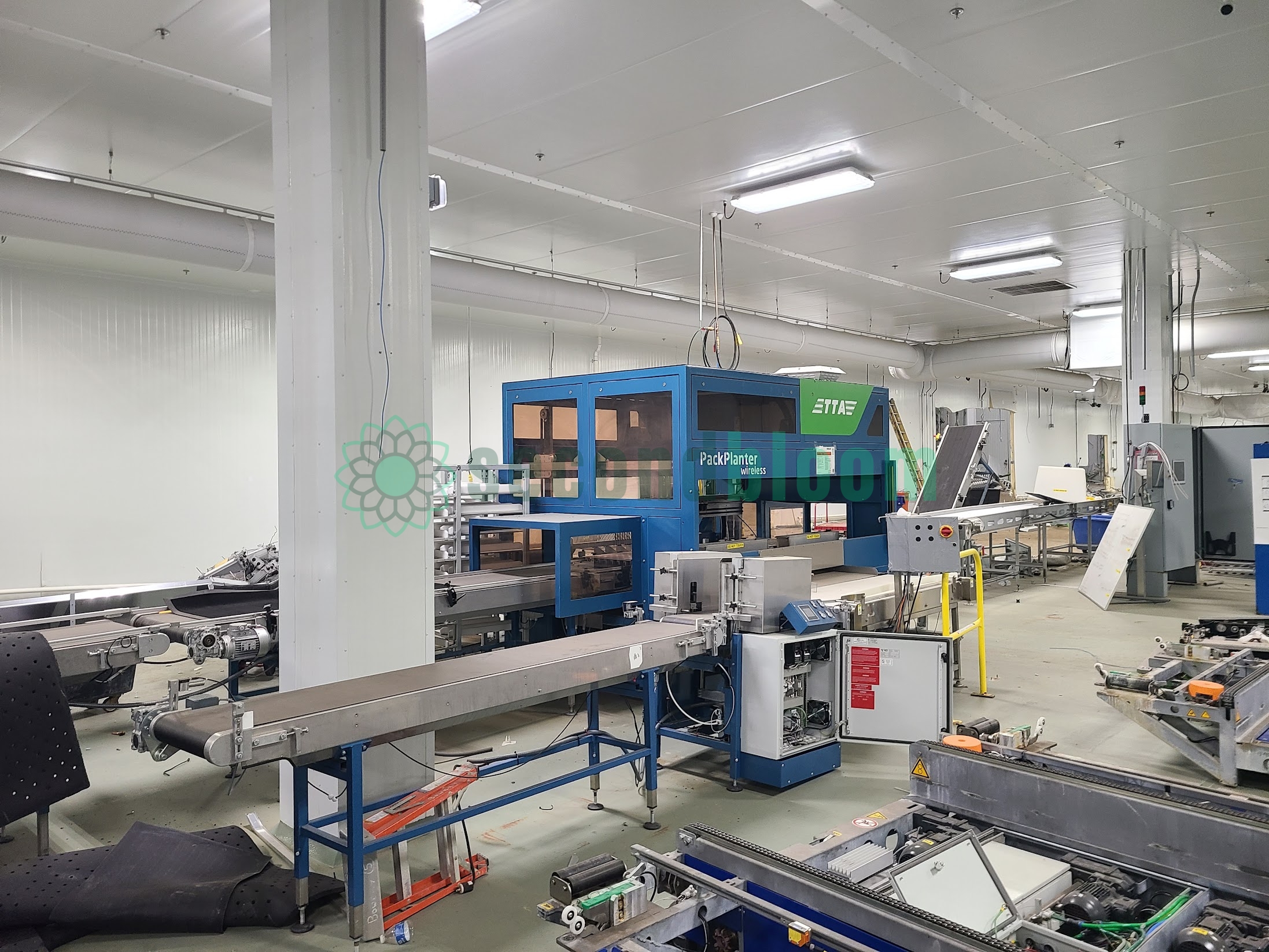

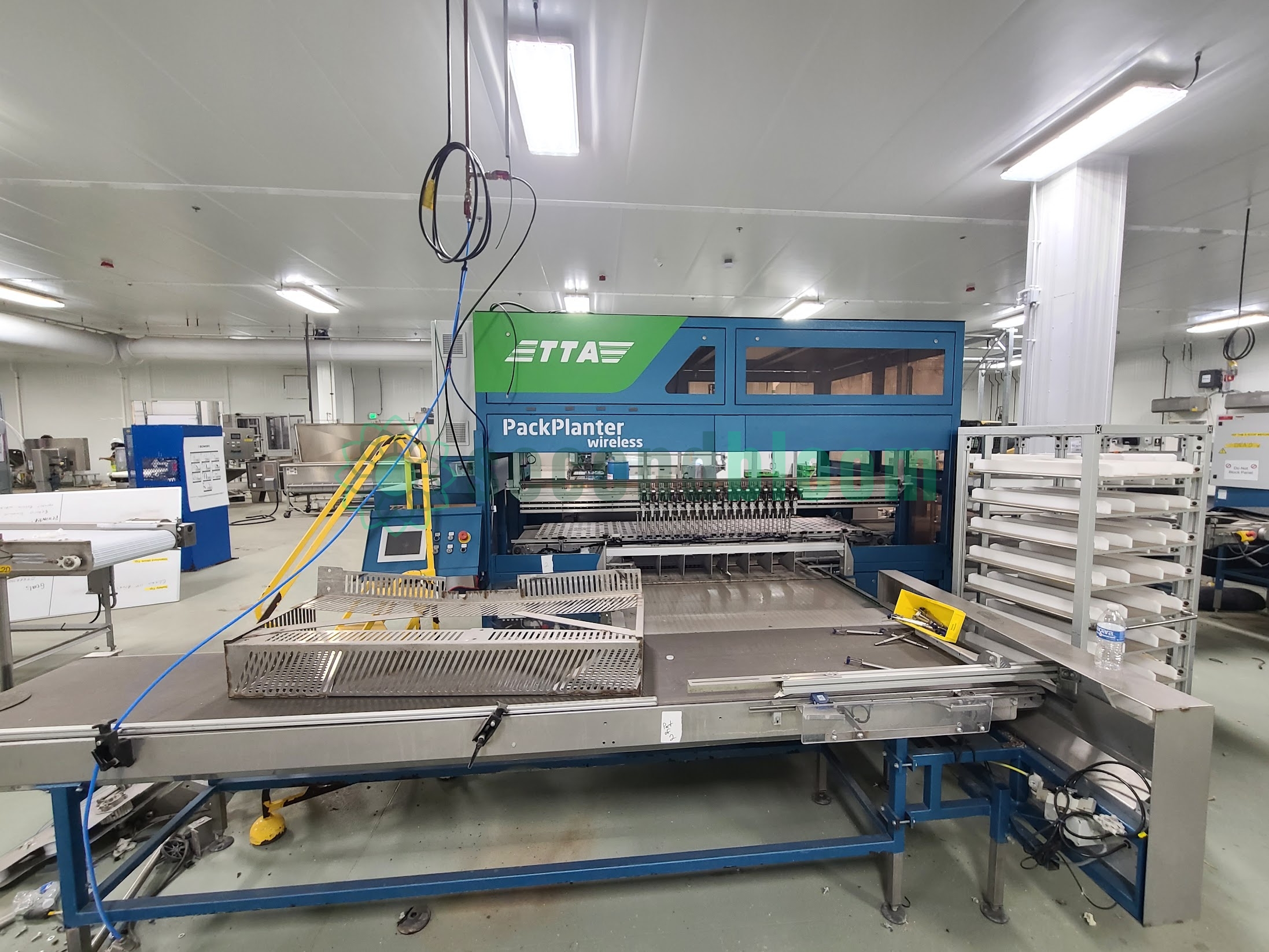

TTA PackPlanter Wireless Transplanting System | Located in Maryland

Tuinbouw Technisch Atelier (TTA) TLF Loading Robot – Model TLF-14089-1

This 2023 TTA TLF Loading Robot represents cutting-edge Dutch automation technology for commercial greenhouse and nursery operations. Manufactured by Tuinbouw Technisch Atelier (TTA), this sophisticated loading system dramatically reduces labor costs while improving consistency in your plant handling workflow.

Key Features and Benefits:

• Specialized loading system designed for automatically loading trays and flats onto trolleys
• Advanced positioning system with buffer belt and stepper belt combination
• Smooth declining movement via tilted guide plate for gentle plant material handling
• Intelligent trolley advancement that precisely adjusts to match each tray/flat dimensions
• Tilting conveyor belt with slider bar mechanism for consistent loading performance
• Programmable control system adaptable to various tray sizes and formats
• Low maintenance design with easy access for cleaning and servicing

The TLF Loading Robot functions by positioning a mobile table or trolley underneath the loader while simultaneously aligning trays/flats via the buffer and stepper belt system. Once properly positioned, the conveyor belt tilts and a slider bar smoothly guides the trays onto the mobile table or trolley. This process continues automatically as the trolley advances to accommodate additional trays.

This equipment is ideal for nurseries, greenhouse operations, and indoor farming facilities looking to modernize their production processes and reduce labor demands while maintaining gentle handling of plant materials.

Compatible with standard horticultural trays and trolleys, this TLF Loading Robot integrates seamlessly into existing production lines with minimal adaptation.

Comprehensive Technical Specifications:

• Manufacturer: Tuinbouw Technisch Atelier (TTA) B.V.
• Model: TLF-14089-1
• Year Manufactured: 2023
• Type: Automated tray/flat loading system for trolleys
• Electrical Connection: 3PE~208/230/480V 60hz
• Amperage: 16A
• Electrical Consumption: 1.7 Kva
• Pneumatic Connection: Midi
• Pneumatic Consumption: 1 m³/Hour
• Total Weight: 300 kg
• Operation: Automated positioning and loading system
• Positioning System: Features buffer belt and stepper belt combination
• Loading Mechanism: Tilting conveyor belt with slider bar
• Guidance System: Tilted plate for smooth declining movement of trays/flats
• Advancement: Automatic trolley advancement calibrated to match tray/flat dimensions
• Control System: Programmable for various tray sizes
• Maintenance: Low maintenance requirements, easy cleaning access
• Applications: Commercial greenhouse and nursery operations, plant handling logistics

LOCATION: Maryland area

For serious inquiries, additional technical specifications and demonstration videos can be provided. On-site inspection available for qualified buyers.
